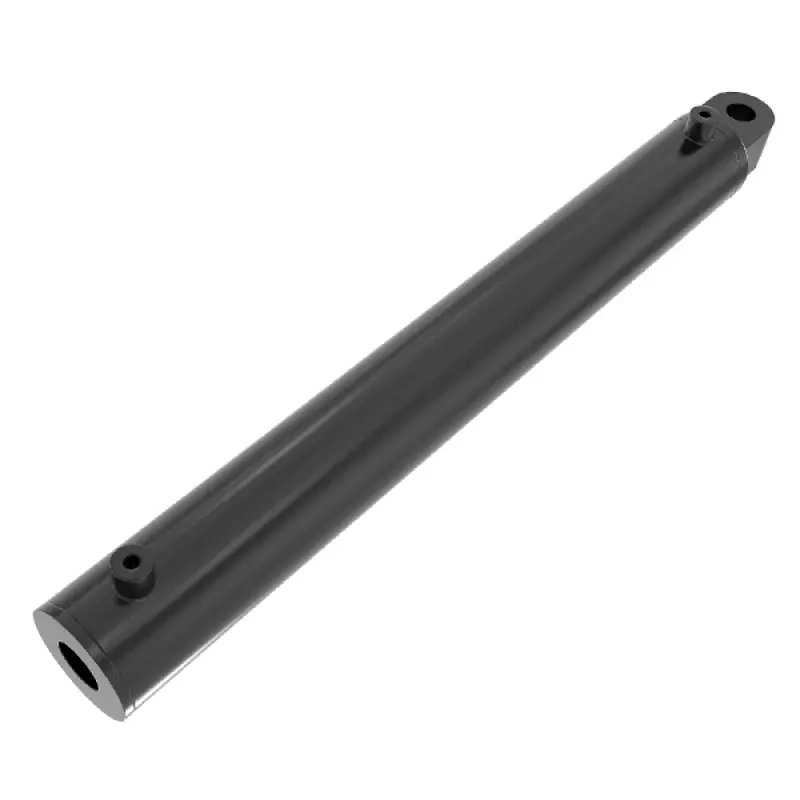

AN209614 Hydraulic Cylinder JOHN DEERE

AN209614 – Hydraulic Cylinder for External Wing Folding

Description

The spare part AN209614 is a hydraulic cylinder (hydraulic cylinder for external wing folding) used in the hydraulic systems of John Deere agricultural machinery, particularly in the folding/unfolding mechanisms of the side booms of sprayers or similar hydraulic aggregates.

This cylinder converts hydraulic pressure into linear motion, controlling the mechanism of moving parts, ensuring smooth and precise operation during the folding and unfolding of booms or other structures where controlled linear movement is required.

The construction is made of durable, wear-resistant materials, allowing it to withstand intense loads during fieldwork and ensuring a long lifespan.

Main Features

• Catalog Number: AN209614
• Type: Hydraulic Cylinder
• Purpose: for folding/unfolding mechanisms (Outer Wing Fold) and other linear movements of the hydraulic system
• Application: hydraulic system of John Deere agricultural machinery (most commonly in sprayer booms or similar devices)
• Material: high-quality metals for pressure work and field conditions

Advantages

• provides smooth and precise hydraulic movement in the drive system;
• made of durable materials for long lifespan;
• essential for the reliable operation of folding/unfolding mechanisms of machines;
• meets the standards of original John Deere parts.
