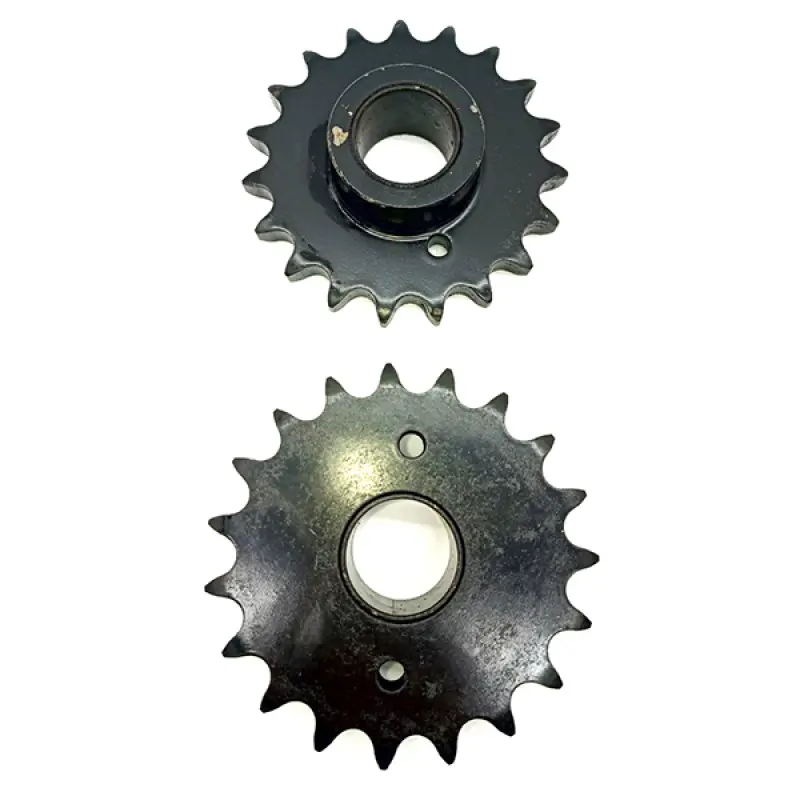

AH215152 Sprocket Wheel Z-19 John Deere (Royal Tiger)

Sprocket for the intermediate shaft drive of the unloading auger AH215152 for John Deere grain harvesters

The spare part AH215152 is a sprocket for the intermediate shaft drive of the unloading auger for John Deere grain harvesters. It is mounted on a chain transmission that drives the horizontal auger for unloading grain from the hopper and transmits torque for its operation. The part is made of durable steel and has 19 teeth (Z-19) ensuring proper cooperation with the chain in a profile of 60.

The sprocket has two mounting holes, which ensures reliable attachment to the shaft and stable operation of the mechanism under heavy loads in field conditions.

Specification

Part number: AH215152

Name: Drive sprocket for the intermediate shaft of the unloading auger

Type: Sprocket / drive wheel

Number of teeth: 19 (Z-19)

Chain profile: 60 pitches

Material: High-strength steel

Mounting: 2 mounting holes for screws

Purpose: Transfer of torque to the chain drive of the unloading auger

Compatibility: John Deere STS series 9000 / S500–S690 — 9560STS, 9570STS, 9650STS, 9660STS, 9670STS, 9750STS, 9760STS, 9770STS, 9860STS, etc.

Condition: New part, high-quality OEM equivalent

Application

The AH215152 sprocket is used in the drive system of the intermediate shaft of the unloading auger of John Deere grain harvesters for:

transferring torque from the engine/reducer to the chain drive;

driving the unloading auger transporting grain from the hopper;

ensuring reliability and durability under intensive working conditions;

reducing wear on chain drive components due to proper tooth geometry.

The sprocket is an important element of the grain unloading mechanism – its condition affects the efficiency and smooth operation of the unloading device during field work.
